Large Automatic Quantitative Filling Machine for Liquor Milk Beverage Production Line 200ml Bottle Wine Cans

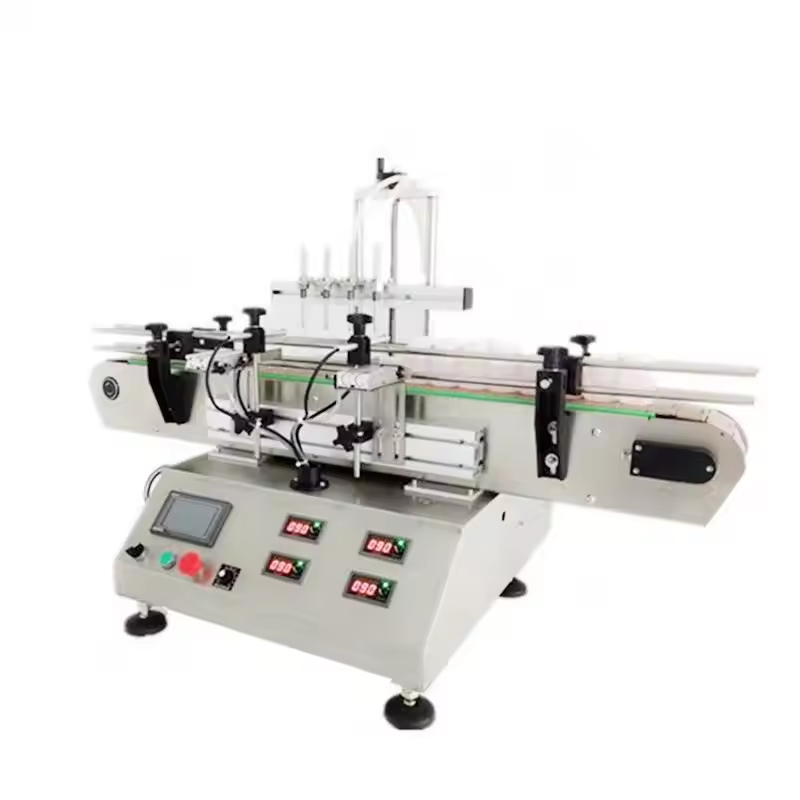

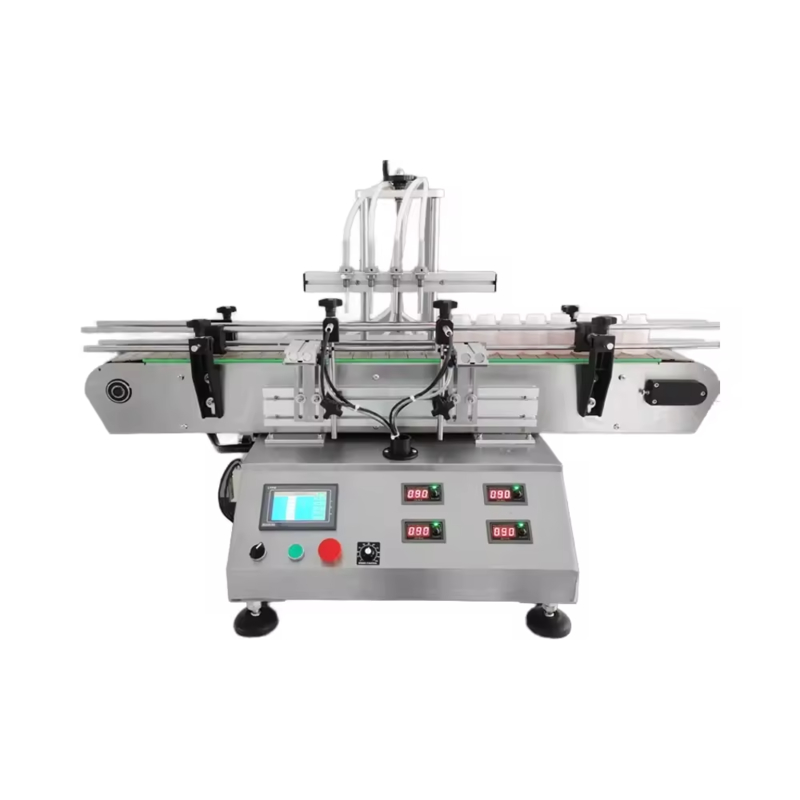

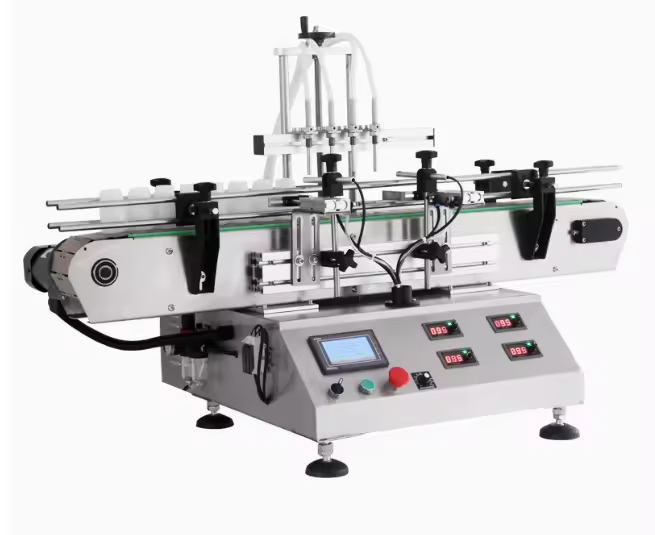

4 Heads table top Automatic Magnetic Pump Liquid Filler Essential Oil Filling machine

Product introduction:

it,s a kind of liquid filling method which uses microcomputer to control filling time, motor speed and other factors of micro water pump to achieve uniform liquid filling with minimum repetition error. Magnetic pump head is driven by magnetic force, pump wheel is connected with the motor without shaft. no need worry about the damage of the shaft seal or the burning of the pump due to the high load. Pump head is made of SS304, which is acid and alkali resistant and corrosion-resistant,Reliable, long service life.

Adopts corrosion-resistant stainless steel micro self-priming magnetic pump of special materials. The working time and intermittent time of the pump are controlled by microcomputer to realize quantitative automatic filling and automatic setting of tube loading time. simple structure, convenient operation, lengthening the material nozzle and moving the leather tube arbitrarily,can meet the unlimited capacity of more than 5g. Reliable and durable filling equipment. Can be customized to extend the tube mobile filling, convenient and practical.

Application:

widely used in medicine, chemical industry, food, beverage, grease, cosmetics and other industries.

Suitable for filling almost all flowing liquids, especially for filling oil, washing liquid, acid-base liquid and corrosive liquid.

Advantages:

4 head magnetic pump filling machine can not only be used alone, but also can be combined with capping machine equipment to form the four head magnetic pump filling and capping production line. In addition, according to the actual production needs of customers, the corresponding equipment and functions of labeling machine, inkjet printer, sealing machine and packer can be added, which can improve the production line


Features:

1. The adjustment time range is large, 0.01-999.9 seconds;

2. Corrosion resistance, pump body is 316 stainless steel, can be filled with corrosive liquid;

3. Small automatic liquid filling machine has the function of anti dripping, accurate measurement and quick setting of filling time;

4. It is easy to clean. When filling different liquids, you just need to remove the filling head and clean it. There is no need to open the chassis;

5. The four head magnetic pump filling machine adopts microcomputer control, Chinese panel display, high degree of automation, simpler, more convenient, more accurate and more effective operation;

6. The size of discharge nozzle can be changed according to the size of your bottle mouth;

7. The motor has high power and large flow. The flow rate of this machine is 3200ml / min, and that of similar products is 1400ml / min

8. Small automatic liquid filling machine can fill 4 heads at the same time to improve the working efficiency. It can also work separately with 1, 2 and 3 heads, which is convenient and practical.

Technical parameters:
